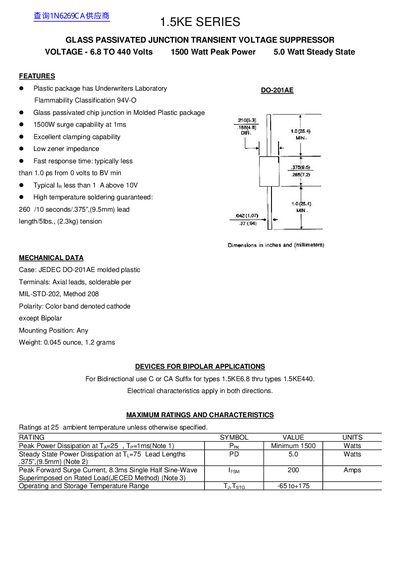

This document describes the features and characteristics of the 1.5KE series glass passivated junction transient voltage suppressor, including voltage range, peak power, steady state power, etc.
This document provides technical specifications for the 1.5KE Series of glass passivated junction transient voltage suppressors (TVS). The devices are available in plastic packages with Underwriters Laboratory DO-201AE Flammability Classification 94V-0 and feature a 1500W surge capability at 1ms. They are designed for bipolar applications and offer excellent clamping capability with low zener impedance and fast response times.
| Steady State Power Dissipation | 5.0 Watts |
|---|---|
| Operating Temperature Range | -65 to +175 |
| Package Type | JEDEC DO-201AE molded plastic |
| Voltage Range | 6.8 to 440 Volts |
The peak power dissipation is a minimum of 1500 Watts at an ambient temperature of 25°C and a pulse width of 1ms.
The steady state power dissipation is 5.0 Watts when the lead length is 375" (9.5mm).
The operating and storage temperature range is from -65°C to +175°C.
