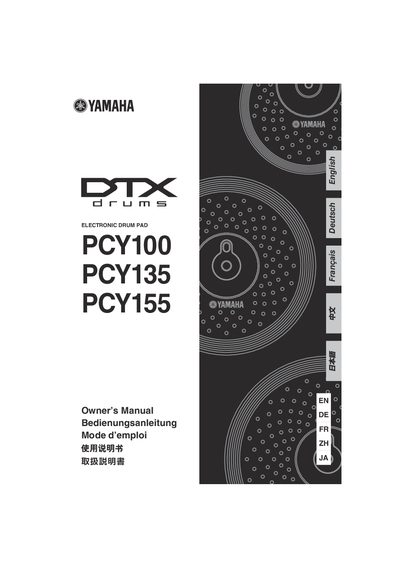

This document is the owner's manual for the PCY100 PCY135 PCY155 electronic drum pad, providing information about the features and characteristics of the product.
This document is the Owner's Manual for the Yamaha PCY100, PCY135, and PCY155 Electronic Drum Pads. It provides instructions on identifying the product via its name plate and serial number, as well as essential safety precautions regarding installation stability, cable handling, and cleaning to prevent injury or damage.
The manual details the package contents for each model, noting that all units feature independent trigger switches in the edge and cup sections. It includes step-by-step assembly instructions for mounting the pad unit onto a cymbal stand or rack system using a stopper and felt pads. This manual is written in German.
The package includes one pad unit, one stopper, one felt pad, one stereo phone cable, and four copies of the Owner's Manual.
You must make the stopper make full contact with the bottom surface of the bolt cover before tightening the key bolt.
Do not use benzine, thinner, or alcohol when cleaning the product.
