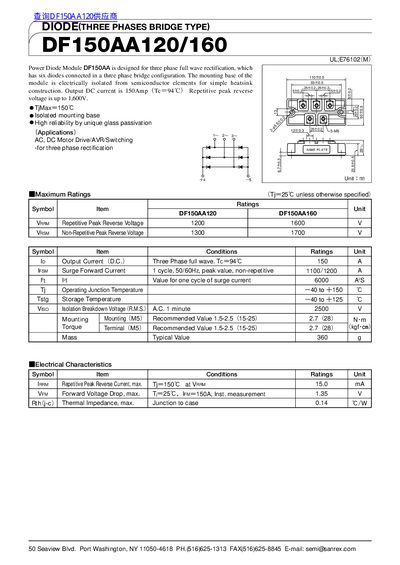

DF150AA120/160 is a three-phase bridge rectifier diode module designed for three-phase full-wave rectification. It consists of six diodes connected in a three-phase bridge configuration. The mounting base of the module is electrically isolated from the semiconductor elements, allowing for simple heatsink construction. The output DC current is 150Amp (Tc=94℃) with a repetitive peak reverse voltage of up to 1,600V. It features high reliability due to its unique glass passivation technology.
The SanRex DF150AA120/160 is a power diode module designed for three-phase full-wave rectification. It features six diodes connected in a three-phase bridge configuration with an electrically isolated mounting base for simple heatsink construction. The module offers high reliability through unique glass passivation.
| Output Current (D.C.) | 150 A |
|---|---|
| Repetitive Peak Reverse Voltage | 1200 V / 1600 V |
| Operating Junction Temperature | -40 to +150 C |
| Isolation Breakdown Voltage | 2500 V |
| Forward Voltage Drop | 1.35 V |
| Thermal Impedance | 0.14 C/W |
| Mass | 360 g |
It is designed for AC and DC motor drive, AVR, switching, and three-phase rectification.
The recommended mounting torque is 1.5-2.5 kgf cm (15-25 Nm) for the M5 terminal.
