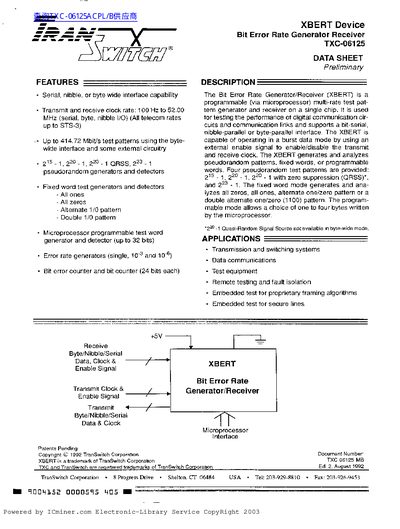

The XBERT is a single-chip device used to test the performance of digital communication circuits and links. It supports serial, nibble-parallel, or byte-parallel interfaces and can generate and analyze various pseudorandom patterns, fixed words, and programmable words.
Key features include support for transmit and receive clock rates up to 52.00 Mbit/s (serial) or higher with external circuitry, error rate generators, and bit counters. The device is microprocessor-programmable via a four-bit address interface.
| Interface Capability | Serial, nibble, or byte wide |
|---|---|
| Clock Rate (Serial) | 100 Hz to 52.00 Mbit/s |
| Clock Rate (Byte-wide) | Up to 414.72 Mbit/s |
The device supports serial, nibble-parallel, or byte-parallel interface capabilities.
It is programmable via a microprocessor using four address bits (A3-0), eight bidirectional data bus bits, and read/write signals.
