TPAM TPAM10S/TPAM10D Series PCB-Mount Universal Input AC-DC Power Supplies Datasheet

The document provides an overview of the features and characteristics of TP products.

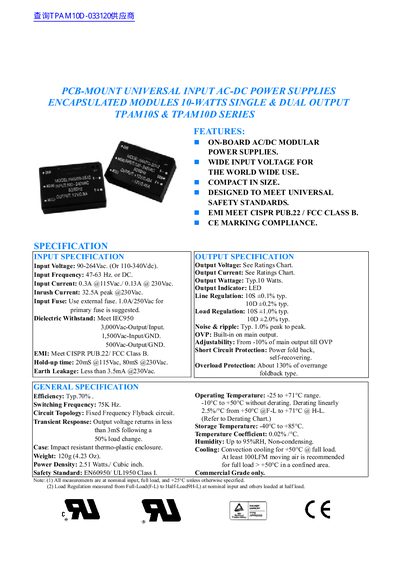

TPAM TPAM10S/TPAM10D Series PCB-Mount Universal Input AC-DC Power Supplies Datasheet - cover page
Brand
TPAM10S/TPAM10D
Category
Power Management
Document type
Datasheet
Language
English
Pages
2
File format
PDF
File size
138 KB
Published
11 June, 2012
Updated
29 September, 2023
MD5 checksum
6FAB358BA8FD8145B743F46B09412558
PDF
TPAM TPAM10S/TPAM10D Series PCB-Mount Universal Input AC-DC Power Supplies Datasheet PDF

About this manual

This document provides technical specifications for the TPAM10S (single output) and TPAM10D (dual output) series of PCB-mount universal input AC-DC power supplies. These encapsulated modules are designed for worldwide use with a wide input voltage range of 90-264 Vac or 110-340Vdc.

What's inside

  • Features
  • Input Specification
  • Output Specification
  • General Specification
  • Output Voltage/Current Ratings
  • Mechanical Dimensions
  • Pin Assignment
  • Derating Chart

Specifications

Output WattageTyp. 10 Watts
Input Voltage90-264 Vac or 110-340Vdc
Input Frequency47-63 Hz or DC
EMI ComplianceCISPR PUB.22 / FCC Class B
Safety StandardEN60950/ UL1950 Class L
Operating Temperature-25 to +71°C
Weight120g (4.23 Oz.)

Frequently asked questions

What is the input voltage range?

The input voltage range is 90-264 Vac or 110-340Vdc.

What is the output wattage?

The typical output wattage is 10 Watts.

Download PDF (138 KB)
