TGA8349-SCC is a high-performance low-noise distributed amplifier with a frequency range of DC to 14GHz, an output power of 16dBm, and a noise figure of 3.1dB.

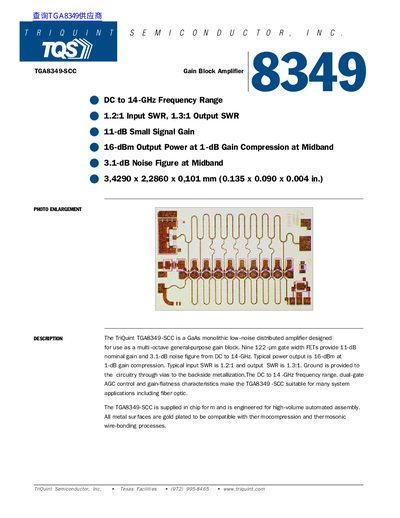

The document describes the TriQuint TGA8349-SCC as a GaAs monolithic low-noise distributed amplifier designed for use as a multi-octave general-purpose gain block. It features nine 122-µm gate width FETs to provide nominal gain and noise figure performance from DC to 14 GHz, with typical power output of 16-dBm at 1-dB gain compression.
| Frequency Range | DC to 14 GHz |
|---|---|
| Input SWR | 1.2:1 |
| Output SWR | 1.3:1 |
| Small Signal Gain | 11-dB |
| Output Power (1-dB Compression) | 16-dBm |
| Noise Figure (Midband) | 3.1-dB |
| Chip Dimensions | 3.4290 x 2.2860 x 0.101 mm |
The device provides 11-dB nominal gain from DC to 14 GHz.
The typical output power is 16-dBm at 1-dB gain compression.
Yes, its characteristics make it suitable for many system applications including fiber optic.
