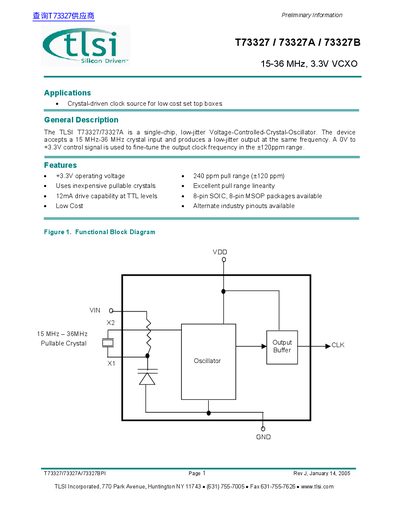

The TLSI T73327/73327A is a low-cost, low-jitter Voltage-Controlled-Crystal-Oscillator. The device accepts a 15 MHz-36 MHz crystal input and produces a low-jitter output at the same frequency. A 0V to +3.3V control signal is used to fine-tune the output clock frequency in the ±120ppm range.
The TLSI 173327/73327A/73327B is a single-chip, low-jitter Voltage-Controlled-Crystal-Oscillator (VCXO) designed for low-cost set-top box applications. The device accepts a 15 MHz to 36 MHz crystal input and produces a low-jitter output at the same frequency. A 0V to +3.3V control signal is used to fine-tune the output clock frequency within a +120ppm range.
The document provides detailed electrical characteristics, including DC and AC parameters, operating conditions, and absolute maximum ratings. It also includes pin configurations for 8-pin SOIC and MSOP packages, along with ordering information for various package types and temperature ranges.
| Operating Voltage | +3.135 V to +3.465 V |
|---|---|
| Operating Temperature | 0°C to +70°C |
| Frequency Range | 15 MHz to 36 MHz |
| Pull Range | +120 ppm |
| Output Clock Rise Time | 1.5 ns |
| Output Clock Fall Time | 1.5 ns |
| Output Clock Duty Cycle | 45% to 55% |
| Maximum Absolute Jitter | 50 ps |
The operating voltage ranges from +3.135 V to +3.465 V.
The device offers a frequency pull range of +120 ppm.
The device is available in 8-pin SOIC and 8-pin MSOP packages.
