Sanyo STK Series Output Stage Datasheet

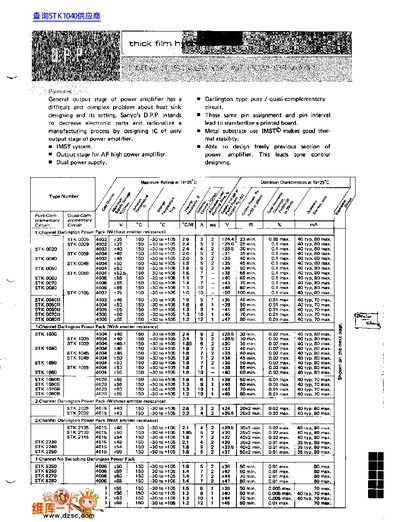

Sanyo STK Series Output Stage Datasheet - cover page
Brand
DPP
Category
amplifier
Document type
Datasheet
Language
English
Pages
2
File format
PDF
File size
196 KB
Published
11 June, 2012
Updated
11 June, 2012
MD5 checksum
6BCD4ABCF03B6EDFCD5D827D01529287
PDF
Sanyo STK Series Output Stage Datasheet PDF

About this manual

This document provides technical data for Sanyo's D.P.P. (Dual Power Pack) output stages designed for AF high power amplifiers. It addresses the complexity of heat sink circuits by standardizing pin assignments and intervals to rationalize manufacturing processes. The document utilizes the IMST system for metal substrates to ensure thermal stability.

What's inside

  • General Output Stage
  • Operation Characteristics
  • Pure-Complementary Circuit
  • Quasi-Complementary Circuit
  • Equivalent Circuit
  • 1-Channel Darlington Power Pack
  • 2-Channel Darlington Power Pack
  • No Switching Darlington Power Pack

Specifications

Operating Temperature Range-30 to +105
Thermal Resistance1.0 to 2.6
Collector-Emitter Voltage150
Collector Current40 typ, 80 max.
Base Current1.0 to 2.6
