The document describes the features and characteristics of the SDK04 product. The SDK04 is an N-channel general purpose transistor with a drain-source voltage of 100V and a gate-source voltage of ±20V. The maximum drain current is 2A, and the pulse drain current is 5A. The SDK04 has a maximum power dissipation of 3W and a maximum operating temperature of 150°C. The document also includes some electrical parameters and characteristic curves.

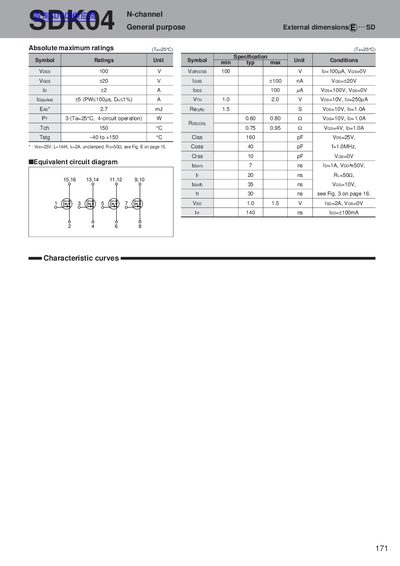

This document is a datasheet for the SDK04 N-channel general purpose transistor. It provides absolute maximum ratings for parameters such as voltage, current, and power dissipation under specific conditions (Ta=25°C). The document also includes switching times and equivalent circuit diagram references.
| Maximum Power Dissipation (Pr) | 3 W |
|---|---|
| Maximum Junction Temperature (Tj) | 150 °C |
| Storage Temperature (Tstg) | -40 to +150 °C |
The maximum power dissipation is 3 W when operating in a 4-circuit configuration at Ta=25°C.
The maximum junction temperature is 150 °C.
