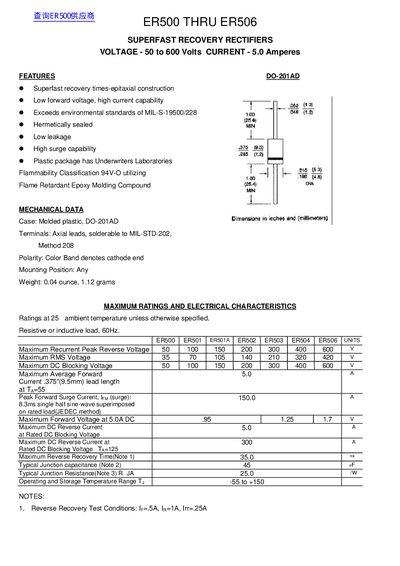

ER500 THRU ER506 SUPERFAST RECOVERY RECTIFIERS have a voltage rating of 50 to 600 volts and a current rating of 5.0 amperes. These diodes feature low forward voltage, high current capability, fast recovery time, low leakage, high surge capability, and durability.
This document provides technical specifications for the ER500 through ER506 series of Superfast Recovery Rectifiers. These components are designed with epitaxial construction to ensure superfast recovery times and feature a DO-201AD plastic package that is hermetically sealed.
The datasheet details maximum ratings, electrical characteristics, and operating conditions for various voltage ratings ranging from 50V to 600V. It includes specific data on forward current capability, reverse recovery time, junction capacitance, and thermal resistance.
| Package Type | DO-201AD |
|---|---|
| Construction | Epitaxial construction |
| Sealing Method | Hermetically sealed |
| Maximum Average Forward Current | 5.0 A |
| Peak Forward Surge Current | 150.0 A |
| Maximum Reverse Recovery Time | 35.0 ns |
| Operating Temperature Range | -55 to +150 C |
The maximum reverse recovery time is 35.0 ns.
The operating and storage temperature range is -55 to +150.
