Features of ER200 to ER206 superfast recovery rectifiers include ultrafast recovery times, low forward voltage, high current capability, high surge capability, compliance with MIL-S-19500/228 environmental standards, insulation plastic packaging using flame retardant epoxy molding compound, low leakage and UL94V-O fire rating.

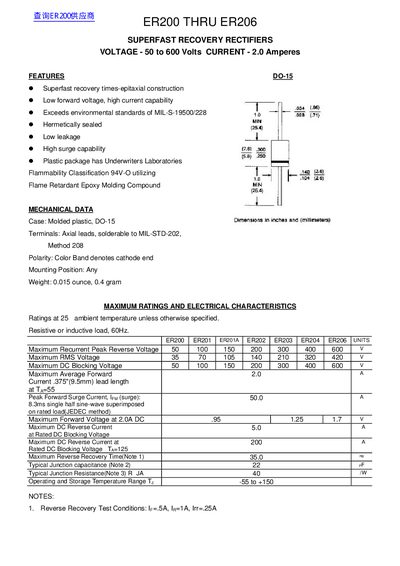

This document is a technical datasheet for the Biber ER200 through ER206 series of Superfast Recovery Rectifiers. The devices are designed with epitaxial construction for superfast recovery times and are hermetically sealed in DO-15 plastic packages.
The datasheet provides maximum ratings, electrical characteristics, and typical performance curves for models ranging from 50V to 600V reverse voltage. Key specifications include a maximum average forward current of 2.0 Amperes and a maximum reverse recovery time of 35.0 ns.
| Series Range | ER200 through ER206 |
|---|---|
| Package Type | DO-15 Molded plastic |
| Maximum Reverse Recovery Time | 35.0 ns |
| Operating Temperature Range | -55 to +150 C |
The maximum reverse recovery time is 35.0 ns under specific test conditions.
Yes, the devices are hermetically sealed to ensure reliability.
