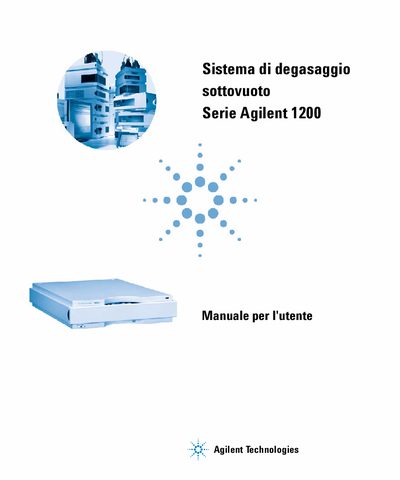

Agilent Technologies Sistema di degasaggio sottovuoto Serie Agilent 1200 Manuale per l\

About this manual

The Agilent G1322A vacuum degasifier is a four-channel system designed to remove dissolved gases from solvents used in HPLC. It utilizes a plastic tubular membrane container and a vacuum pump to create a partial vacuum, allowing gases to pass from the solvent into the container. The system operates in two modes: a normal mode targeting 115 Torr and a continuous mode ranging from 115 to 190 Torr, with an error mode triggered if the vacuum exceeds 190 Torr. The control circuit manages the vacuum pump and solenoid valve to maintain the required pressure levels. This manual is written in Italian.

What's inside

• Introduction
• Environmental Requirements
• Installation
• Operation
• Troubleshooting
• Maintenance
• Safety Information

Specifications

Frequently asked questions

What is the normal operating pressure setting?

The normal operating mode uses a value close to the default setting of 115 Torr.

When does the system enter error mode?

The system enters error mode if the vacuum level exceeds 190 Torr.

What is the maximum time to reach normal mode?

The system has a maximum of 8 minutes to reach mode 1; otherwise, it switches to mode 2.
