ADNK-5030 Solid-State Optical Mouse Sensor handbook

Avago provides ADNS-5030 Solid-State Optical Mouse Sensor Sample Kit, which contains sensor, lens, LED assembly clip, LED and other components.

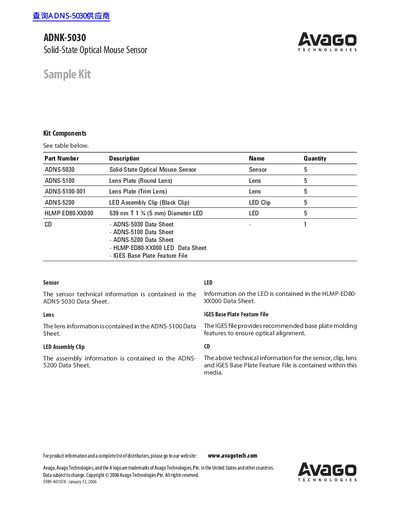

ADNK-5030 Solid-State Optical Mouse Sensor handbook - cover page
Brand
ADNK-5030
Category
Other Electronics
Document type
Product Leaflet
Language
English
Pages
1
File format
PDF
File size
51 KB
Published
08 June, 2012
Updated
30 September, 2023
MD5 checksum
46EE02989423FF15F1142BBB6BF3C88F
PDF
ADNK-5030 Solid-State Optical Mouse Sensor handbook PDF

About this manual

This document serves as a kit overview for the ADNS-5030 Solid-State Optical Mouse Sensor. It lists the specific parts included in the kit, including the sensor, lens plates, LED assembly clip, and the HLMP-ED80-XX000 LED.

The document directs users to individual data sheets for the sensor, lens, clip, and LED for complete technical specifications. It also mentions the IGES Base Plate Feature File for recommended molding features.

What's inside

  • Kit Components
  • Sensor
  • Lens
  • LED Assembly Clip
  • IGES Base Plate Feature File
  • Data Sheet References

Frequently asked questions

What is the wavelength of the LED used in this sensor kit?

The included LED has a wavelength of 639 nm.

What diameter is the LED specified as having?

The LED in this kit has a diameter of 5 mm.
