This document is the datasheet of SMF101-107 series, which mainly introduces the maximum ratings, electrical characteristics, maximum forward surge current, maximum instantaneous voltage, maximum direct reverse current, maximum reverse recovery time, typical junction capacitance, etc.

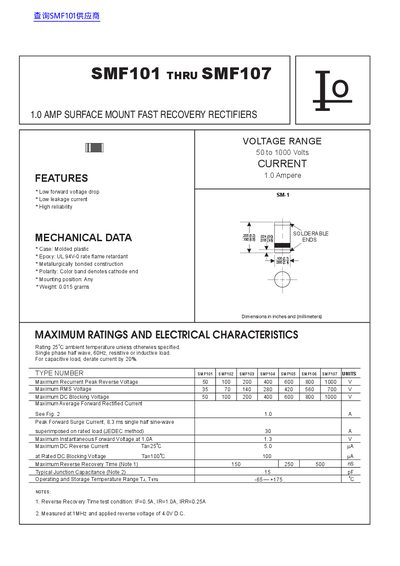

This document provides technical specifications for the SiSMF SMF101 through SMF107 series of 1.0 Ampere surface mount fast recovery rectifiers. Key features include a low forward voltage drop, low leakage current, and high reliability. The components are housed in a molded plastic case with UL 94-0 flame retardant epoxy and utilize a metallurgically bonded construction.
| Maximum Average Forward Rectified Current | 1.0 A |
|---|---|
| Maximum Reverse Recovery Time | 150 to 500 ns |
| Operating and Storage Temperature Range | -65 to +175 °C |
| Maximum Instantaneous Forward Voltage | 1.3 V |
The maximum average forward rectified current is 1.0 A.
The peak forward surge current is 30 A for an 8.3 ms single half sine-wave.
The operating and storage temperature range is -65 to +175 °C.
