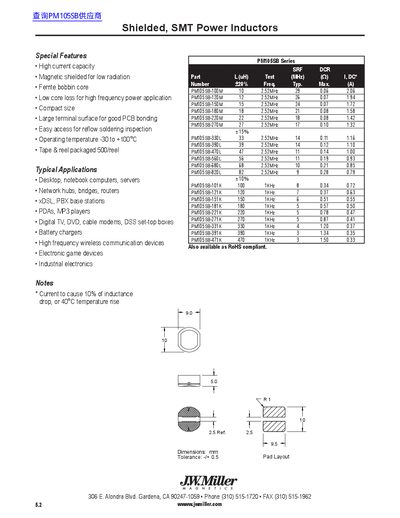

This data sheet lists the specifications of JWMiller PM105SB series inductors, including inductance value, test frequency, typical resistance, maximum DC current, etc.
This document describes the PM105SB Series of shielded SMT power inductors manufactured by JW Miller. Key features include high current capacity, magnetic shielding for low radiation, ferrite bobbin cores with low core loss suitable for high-frequency applications, and a compact size design.
The series is designed for use in desktop computers, servers, network hubs, routers, xDSL base stations, PDAs, MP3 players, digital TVs, DVD players, cable modems, set-top boxes, battery chargers, wireless communication devices, game devices, and industrial electronics. The components are available in tape & reel packaging (500/reel) and are offered as RoHS compliant.
The inductors operate within a temperature range of -30 to +100°C.
Each reel contains 500 inductors.
The PM105SB-100M model is tested at a frequency of 2.52MHz.
