Pulse Military/Aerospace Products Data Sheet

Pulse is one of the leading manufacturers of magnetic interface transformers, data bus couplers, delay lines, Ethernet transformers, and custom electronic components for Military/Aerospace applications.

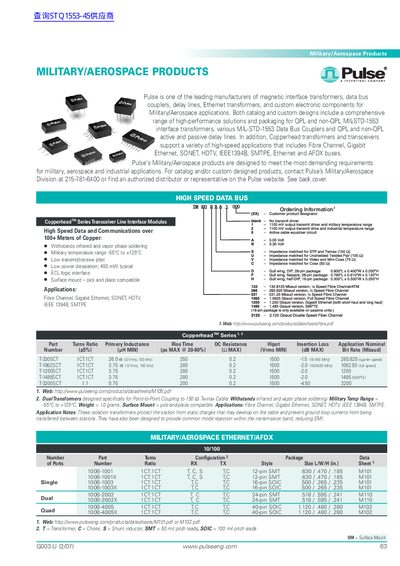

Pulse Military/Aerospace Products Data Sheet - cover page
Brand
Military/Aerospace
Category
Other Electronics
Document type
Datasheet
Language
English
Pages
4
File format
PDF
File size
373 KB
Published
08 June, 2012
Updated
30 September, 2023
MD5 checksum
8CFAA7A1B2363B5AE8CA38D1339B970C
PDF
Pulse Military/Aerospace Products Data Sheet PDF

About this manual

This document serves as a comprehensive data sheet for Pulse's Military/Aerospace product line. It details specifications for magnetic interface transformers, data bus couplers, delay lines, and custom electronic components designed for demanding military and aerospace applications. The text highlights support for QPL and non-QPL MIL-STD-1553 interfaces as well as high-speed protocols like Fibre Channel, Gigabit Ethernet, and SONET.

What's inside

  • Copperhead Series Transceiver Line Interface Modules
  • High Speed Data and Communications
  • MIL-STD-1553 Non-OPL Transformers
  • MIL-STD-1553 Stacked and Low Profile
  • Ordering Information
  • Application Notes

Specifications

Operating Temperature Range-55°C to +125°C
Impedance Match150 Ohm
Package Type16-pin package
Part Number ExampleT-330SCT

Frequently asked questions

What is the operating temperature range for Copperhead Series Transceiver Line Interface Modules with a military temperature rating?

These modules operate in a military temperature range from -55°C to +125°C.

What is the maximum weight of Dual Transformers designed for Point-to-Point Coupling to 150 Ω Twinax Cable?

The weight of these dual transformers is 7.0 grams.

What are the dimensions in inches for MIL-STD-1553 Non-QPL, Low Profile and Stacked transformers with part numbers ending in -1 or -2?

These transformers have dimensions of .630/.630/.155 inches.
