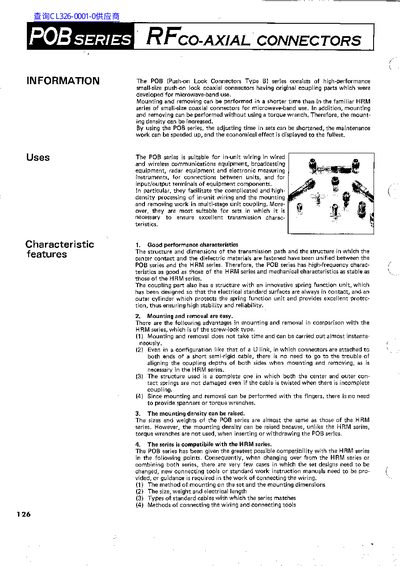

The POB (Push-on Lock Connectors Type B) series consists of high-performance, small-size push-on lock coaxial connectors developed for microwave-band use. These connectors feature an innovative spring function unit and an outer cylinder for excellent protection, ensuring high stability and reliability. Mounting and removal can be performed almost instantaneously without the need for a torque wrench, allowing for increased mounting density and faster maintenance work compared to the screw-lock HRM series.
| Frequency range | DC ~ 12.4GHz |
|---|---|
| Insulation resistance | 5000MΩ or more |
| Withstand voltage | 1000V AC (rms) |
| Contact resistance | 4mΩ or less |
| Characteristic impedance | 50Ω |
| Service life | 500 times |
| Voltage standing wave ratio (V.S.W.R.) | 1.15 or less (DC ~ 6GHz) |
No, mounting and removal can be performed with the fingers without using a torque wrench.
Yes, the series is compatible with the HRM series in mounting dimensions, size, weight, and wiring methods.
