PPO-02 is an extension port for Olympus PT-020, which allows you to use the wide conversion lens WCON-07C underwater.

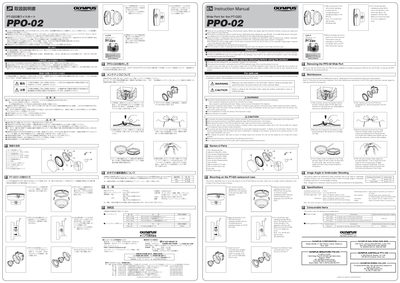

The Olympus PPO-02 is a wide port accessory designed for use with the PT-020 waterproof case, CLA-7 conversion lens adapter, and WCON-07C wide conversion lens. When combined, this system enables underwater shooting at a wide angle of 30mm (equivalent to 35mm film). The manual details the mounting procedure, which involves aligning grooves on the port clamping buckles with the bosses on the case and turning them until they click. It also notes that the built-in flash cannot be used when this product is combined with the PT-020 waterproof case.
The document provides comprehensive maintenance instructions to ensure the product remains waterproof. Users are instructed to remove the camera and lens after shooting, immerse the case in tap water to remove salt, and clean the silicone O-rings. The manual warns against disassembly, exposure to high temperatures, and diving at depths greater than 40 meters, which could cause deformation or water penetration.
| Underwater image angle | approx. 70 degrees |
|---|---|
| Land image angle | 19 mm |
| Maximum operating depth | 40 meters |
No, the camera's built-in flash cannot be used when this product is used in combination with the PT-020 waterproof case.
The product is designed for use at depths of up to 40 meters; diving deeper may cause deformation or damage.
