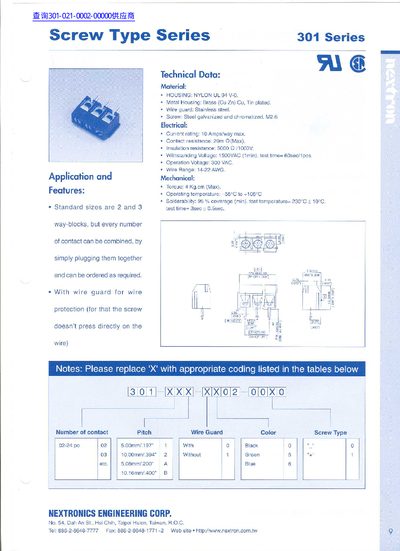

This document provides technical data for the NEXTRONICS 301 Series Screw Type Terminal Blocks. The series features standard sizes of 2-way and 3-way blocks that can be combined by plugging them together to create custom contact counts.
Key specifications include a current rating of 10 Amps per way, an operation voltage of 300 VAC, and a wire range of 14-22 AWG. The housing is made of NYLON UL 94 V-0 with brass metal contacts and stainless steel wire guards.
| Current rating | 10 Amps/way max. |
|---|---|
| Contact resistance | 20mΩ (Max) |
| Withstanding Voltage | 1500VAC (1min) |
| Operation Voltage | 300 VAC |
| Wire Range | 14-22 AWG |
| Operating temperature | -55°C to +105°C |
| Housing Material | NYLON UL 94 V-0 |
Standard sizes are 2-way and 3-way blocks.
Yes, every number of contact can be combined by simply plugging them together.
