This document introduces the parts, usage and notes of the 12-60mm f2.8-4.0 SWD lens.

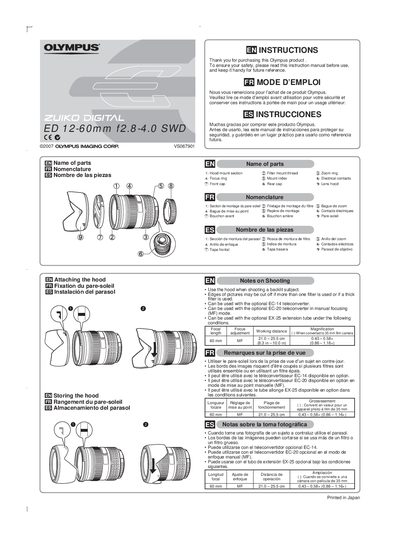

This document provides a quick reference guide for the Olympus ED 12-60mm f/2.8-4.0 SWD lens. It includes a nomenclature section identifying parts such as the zoom ring, focus ring, and electrical contacts, along with instructions on attaching and storing the lens hood.
The leaflet lists shooting notes regarding filter usage, compatibility with optional teleconverters (EC-14, EC-20) and extension tubes (EX-25), and provides a table of magnification values. It also features a comprehensive list of main specifications including focal length, aperture range, weight, dimensions, and mount type.
| Mount Type | Four Thirds Mount |
|---|---|
| Max Aperture | f/2.8 - f/4.0 |
| Image Angle | 184° - 20° |
| Lens Configuration | 110 groups, 14 lenses |
| Filter Mount Thread Diameter | 72 mm (2.8 in) |
| Weight | 575 g (excluding hood and cap) |
Yes, it can be used with the optional EC-14 teleconverter.
Yes, it can be used with the optional EC-20 teleconverter in manual focusing (MF) mode.
The shooting range is from 1.575 m to infinity.
