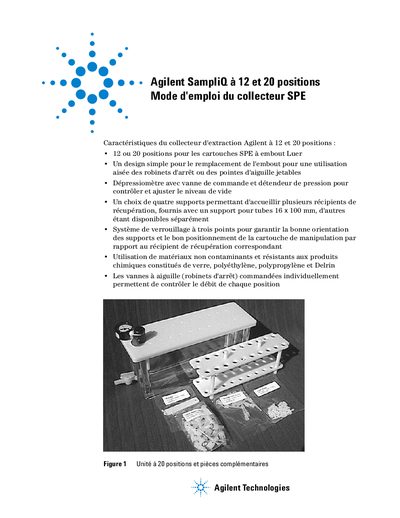

Agilent Technologies' SampliQ SPE Collector is an extraction collector with 12 or 20 positions, featuring an easy-to-change Luer-tip SPE column design and adjustable vacuum level. It includes four optional collection racks to accommodate different collection containers and has individually controlled needle valves for flow control at each position.
The document describes the features of the Agilent SampliQ SPE vacuum collector, which supports up to 20 positions for SPE cartridges. It is designed with non-contaminating materials such as glass, polyethylene, and polypropylene to ensure chemical resistance.
The guide details the assembly process, including the installation of needles and stopcocks into the cover, and explains how to properly connect the vacuum system using a liquid trap. It also outlines the standard SPE protocol steps: conditioning/equilibrating the cartridge bed, loading the sample, removing interferences, and eluting analytes. This manual is written in French.
| Number of positions | 12 or 20 |
|---|---|
| Tube support included (12/20 pos) | 16 x 100 mm tubes |
| Vacuum control feature | Depressiomètre with valve and regulator |
The collector allows performing SPE steps on up to 20 cartridges in parallel.
The Agilent SampliQ vacuum collector allows you to perform solid-phase extraction steps on up to 20 cartridges in parallel.
The unit comes with a support designed for tubes measuring 16 x 100 mm.
You must connect the evacuation valve using a vacuum tube with an inner diameter of 3/8".
