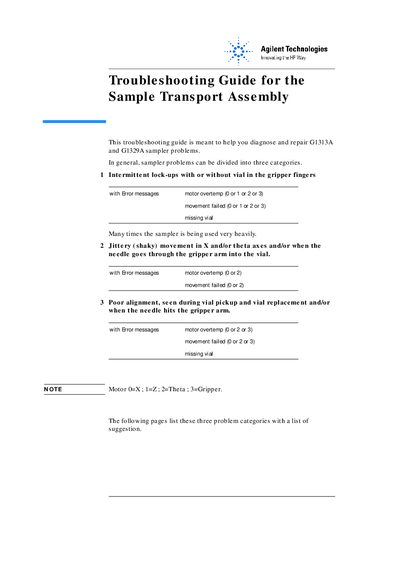

This document is a troubleshooting guide for G1313A and G1329A sampler problems, focusing on three categories of issues and providing suggestions for diagnosis and repair.
This troubleshooting guide is designed to assist users in diagnosing and repairing problems with the Sample Transport Assembly (STAS) on Agilent G1313A and G1329A samplers. It categorizes issues into three main groups: intermittent lock-ups, jittery movement, and poor alignment.
| Theta Torque Range | 30-50 |
|---|---|
| X-axis Torque Range | 50-90 |
| Z-axis Torque Range | 90-130 |
| Gripper Open Torque Range | 30-65 |
The sampler must be turned off for about 10 minutes to allow the motor to cool down.
Use grease from the sample transport repair kit; do not use other grease.
