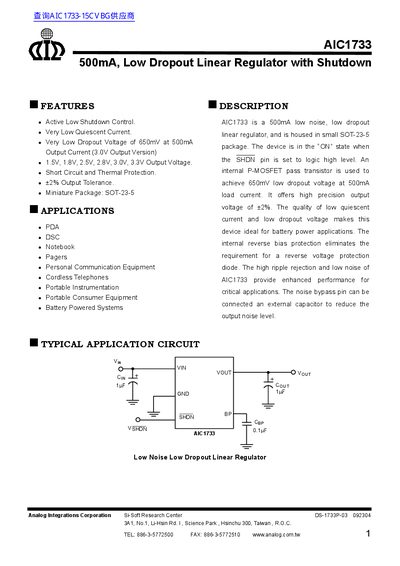

AIC1733 is a 500mA low noise, low dropout linear regulator, and is housed in small SOT-23-5 package. When the SHDN pin is set to logic high level, the device is in the “ON” state. An internal P-MOSFET pass transistor is used to achieve 650mV low dropout voltage at 500mA load current. It offers high precision output voltage of ±2%. The quality of low quiescent current and low dropout voltage makes this device ideal for battery power applications. The internal reverse bias protection eliminates the requirement for a reverse voltage protection diode. The high ripple rejection and low noise of AIC1733 provide enhanced performance for critical applications. The noise bypass pin can be connected an external capacitor to reduce the output noise.
The AIC1733 is a 500mA low noise, low dropout linear regulator housed in a small SOT-23-5 package. It features an internal P-MOSFET pass transistor to achieve a very low dropout voltage of 650mV at 500mA output current for the 3.0V version. The device offers high precision output voltage with +2% tolerance and includes short circuit and thermal protection.
| Continuous Output Current | 500 mA |
|---|---|
| Dropout Voltage (3.0V Out) | 650 mV |
| Output Voltage Tolerance | +2% |
| Thermal Shutdown Temperature | 155 °C |
| Package Type | SOT-23-5 |
The device is in the "ON" state when the SHDN pin is set to logic high level.
Yes, it includes short circuit and thermal protection features.
