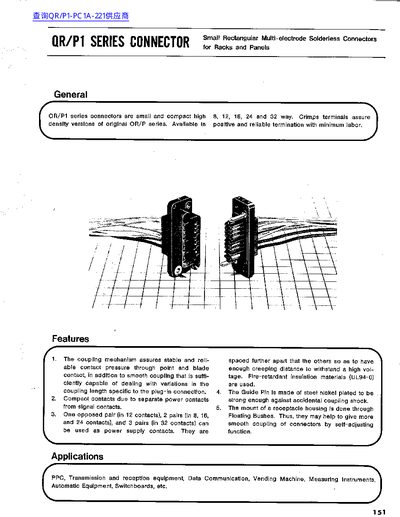

The QR/P1 series consists of compact high-density connectors designed for rack and panel applications. These connectors offer reliable termination with crimp terminals and feature a coupling mechanism that ensures stable contact pressure through point and blade contacts. The design separates power contacts from signal contacts to minimize interference, while fire-retardant insulation materials (UL94-0) are used throughout.
| Number of contacts | 8, 12, 16, 24 and 32 way |
|---|---|
| Insulation material | Nylon Polyethylene terephthalate Black |
| Safety standard | UL, CSA, TUV requirements |
| Withstand voltage (Power) | AC 1000V for 1 min |
| Operating temperature range | -10 to +60 degrees Celsius |
The mating clearance must be 1.5mm or less.
The minimum float dimension is 0.4 mm.
