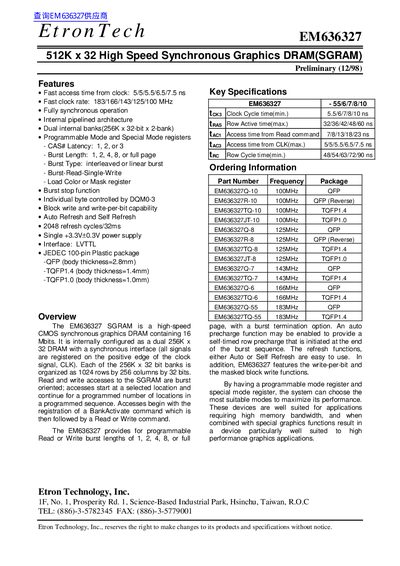

The EtronTech EM636327 is a 512K x 32 high-speed synchronous graphics DRAM (SGRAM) from Etron Technology that features fast access time (5/5/5.5/6.5/7.5ns) and fast clock rate (183/166/143/125/100 MHz).
The EM636327 SGRAM is a high-speed CMOS synchronous graphics DRAM containing 16 Mbits. It is internally configured as a dual 256K x 32 DRAM with a synchronous interface where all signals are registered on the positive edge of the clock signal, CLK.
Read and write accesses to the SGRAM are burst oriented, starting at a selected location and continuing for a programmed number of locations in a programmed sequence. The device provides programmable Read or Write burst lengths of 1, 2, 4, 8, or full page, with a burst termination option.
| Capacity | 16 Mbits |
|---|---|
| Configuration | Dual 256K x 32-bit x 2-bank |
| Access Time (min) | 5/5/5.5/6.5/7.5 ns |
| Clock Rate | 183/166/143/125/100 MHz |
| Power Supply | +3.3V+0.3V |
| Package Type | JEDEC 100-pin Plastic package |
It is internally configured as a dual 256K x 32 DRAM with a synchronous interface.
The CAS# Latency can be set to 1, 2, or 3.
