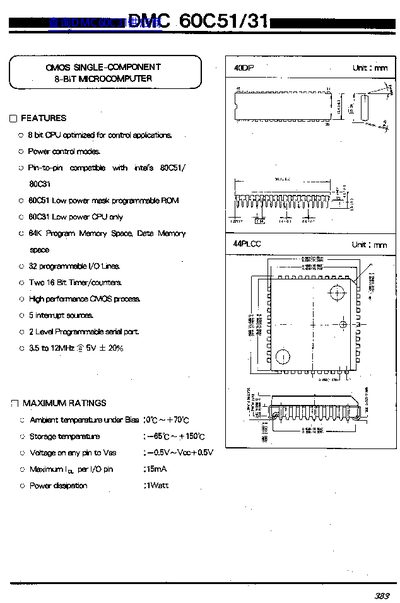

The document describes the DMC 60C51/31, a high-performance microcontroller fabricated using DMC's high-density CMOS technology. It is optimized for control applications and offers power control modes including idle and powerdown states.
Key features include an 8-bit CPU compatible with Intel's 80C51/80031, up to 64K of program memory space, 32 programmable I/O lines, two 16-bit timers/counters, and a high-performance CMOS process operating at frequencies from 3.5 to 12MHz.
| CPU Architecture | 8 bit CPU optimized for control applications |
|---|---|
| I/O Lines | 32 programmable I/O Lines |
| Timers/Counters | Two 16 Bit Timer/counters |
| Operating Frequency Range | 3.5 to 12MHz @ 5V + 20% |
| Power Dissipation | 1Watt |
The device operates at a supply voltage of 5V with a tolerance of +20%.
Yes, it is pin-to-pin compatible with Intel's 80C51/80031.
