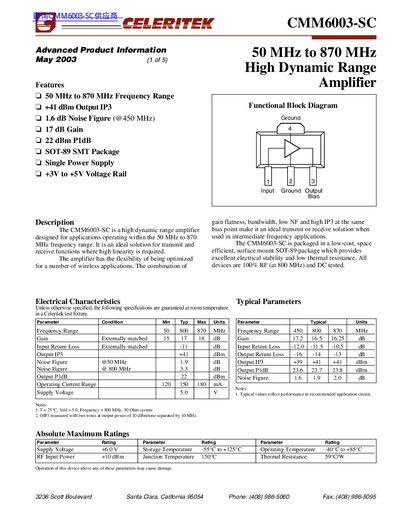

The CMM6003-SC is a high dynamic range amplifier designed for applications operating within the 50 MHz to 870 MHz frequency range. It is an ideal solution for transmit and receive functions where high linearity is required. The amplifier has the flexibility of being optimized for a number of wireless applications. The combination of gain flatness, bandwidth, low NF and high IP3 at the same bias point make it an ideal transmit or receive solution when used in intermediate frequency applications. The CMM6003-SC is packaged in a low-cost, space efficient, surface mount SOT-89 package which provides excellent electrical stability and low thermal resistance. All devices are 100% RF (at 800 MHz) and DC tested.
The CMM6003-SC is a high dynamic range amplifier designed for applications within the 50 MHz to 870 MHz frequency range, specifically targeting transmit and receive functions requiring high linearity. It features a low-cost SOT-89 surface-mount package optimized for intermediate frequency applications with excellent electrical stability.
| Frequency Range | 50 MHz to 870 MHz |
|---|---|
| Output IP3 | +41 dBm |
| Noise Figure (@450 MHz) | 1.6 dB |
| Gain | 17 dB |
| Output P1dB | 22 dBm |
| Package Type | SOT-89 SMT Package |
| Supply Voltage Range | +3V to +5V |
The amplifier operates within a frequency range of 50 MHz to 870 MHz.
The device is packaged in a low-cost, space-efficient SOT-89 surface mount package.
