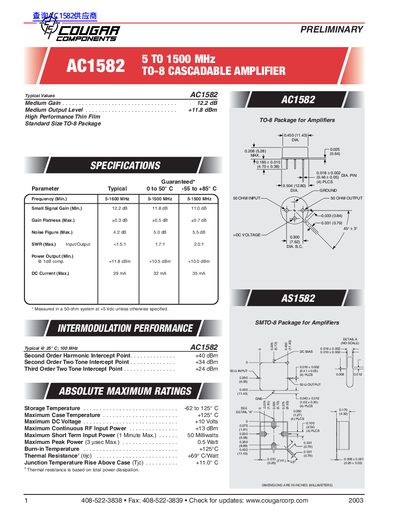

The document provides typical values and specifications for the AC1582 medium frequency amplifier. The amplifier features medium gain, medium output level, and high performance thin film standard size TO-8 package.
This document is a preliminary datasheet for the COUGAR AC1582, a high-performance thin film cascaded amplifier designed in a standard TO-8 package. It operates within a frequency range of 5 to 1500 MHz (with specific columns extending to 1600 MHz) and provides guaranteed electrical parameters such as small signal gain, noise figure, and power output.
| Frequency Range (Min) | 5-1600 MHz / 5-1500 MHz |
|---|---|
| Small Signal Gain (Min) | 12.2 dB to 11.0 dB |
| Gain Flatness (Max) | +0.3 dB to +0.7 dB |
| Noise Figure (Max) | 4.2 dB to 5.5 dB |
| SWR (Max) Input/Output | <1.5:1 / <2.0:1 |
| Power Output (Min) @ 1dB comp. | +11.8 dBm to +10.0 dBm |
| DC Current (Max) | 29 mA to 35 mA |
| Package Type | TO-8 Package |
| Storage Temperature | -62 to 125° C |
| Maximum Case Temperature | +125°C |
The device operates from 5 to 1500 MHz.
The typical small signal gain is 12.2 dB.
