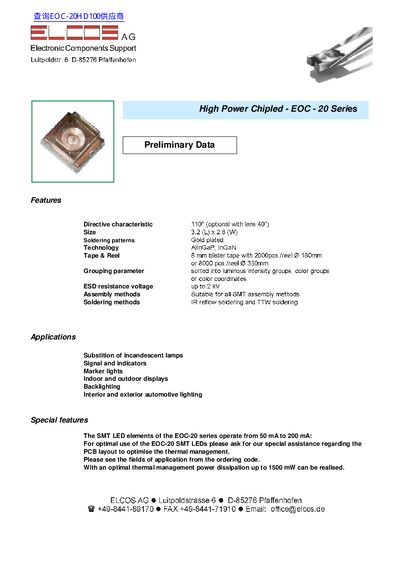

This document introduces the features of EOC-20 series SMT LED, including directive characteristic, size, soldering patterns, technology, tape & reel, grouping parameter, ESD resistance voltage, assembly methods, soldering methods, applications, etc.
This document provides preliminary specifications for the ELCOS EOC-20 Series high power chip LEDs, including emission wavelengths, luminous intensity, viewing angle, and applications such as backlighting and automotive lighting. The LEDs are available in various colors and current ratings from 50 mA to 200 mA. Thermal management is recommended for optimal performance.
The product supports SMT assembly methods and is suitable for substitution of incandescent lamps in both indoor and outdoor displays and automotive applications.
| Viewing Angle | 110° |
|---|---|
| Size | 3.2 (L) x 2.8 (W) |
| Technology | AllnGaP, InGaN |
| Soldering Patterns | Gold plated |
| Power Dissipation | Up to 1500 mW |
The viewing angle is 110°, with an optional 40° lens.
The LEDs operate from 50 mA to 200 mA.
Suitable for substitution of incandescent lamps, signal and indicator lights, backlighting, and automotive lighting.
