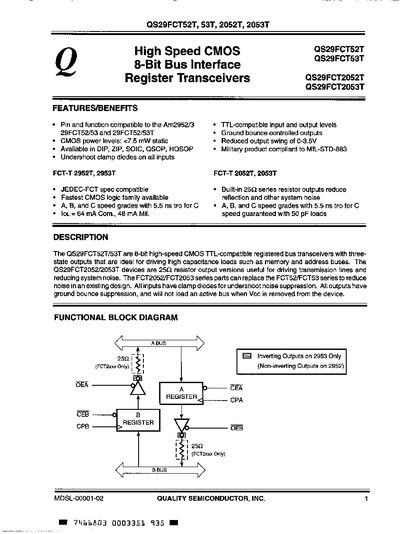

This document provides technical specifications and features for the QS29FCT52T, 53T, 2052T, and 2053T series of high-speed CMOS TTL-compatible registered bus transceivers. These devices are designed to drive high capacitance loads such as memory and address buses, with options for resistor outputs to reduce system noise.
| Logic Family Type | High Speed CMOS |
|---|---|
| Bus Interface Width | 8-Bit Bus Interface |
| Power Consumption (Static) | <7.5 mW |
| Operating Temperature (Commercial) | 0°C to 70°C |
| Operating Temperature (Military) | -55°C to 125°C |
| Supply Voltage | 5.0V + 5% (Commercial) |
| Propagation Delay (Typical) | 2 ns to 10 ns |
The devices are pin and function compatible to the Am2952/3, 29FCT52/53, and 29FCT52/53T.
Yes, they are compliant with MIL-STD-883 and available in A, B, and C speed grades.
The devices are available in DIP, ZIP, SOIC, QSOP, and HQSOP packages.
