The document provides information about RoHS compliant resistors. It lists different models with power ratings, dimensions, and working voltages, and describes their resistance range and characteristics.

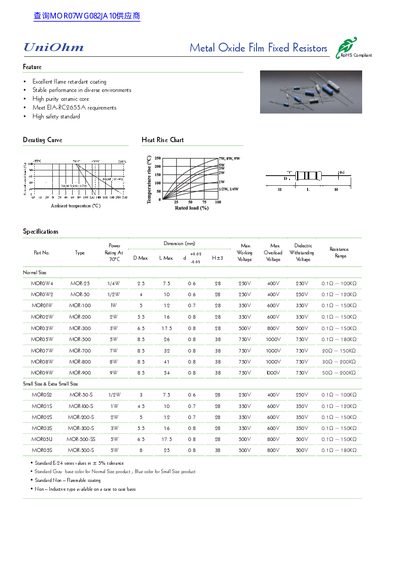

This document provides a comprehensive overview of UniOhm's Metal Oxide Film Fixed Resistors. It lists various part numbers categorized by Normal Size, Small Size, and Extra Small Size, specifying ratings from 1/4W to 8W with tolerances ranging from +5% to +20%. Key features include RoHS compliance, a high purity ceramic core, and excellent flame retardant coating.
| Tolerance (Normal Size) | + 19% +0.05Q |
|---|---|
| Tolerance (Small Size) | + 2% +0.05Q |
The standard tolerance for Normal Size products is +19% with a deviation of +0.05Q.
Small Size products have a standard blue base color.
