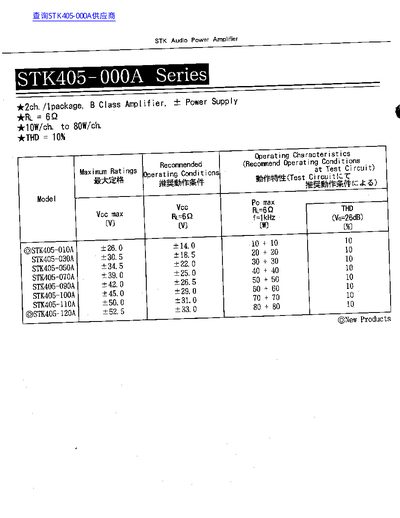

STK STK405-000A Series Audio Power Amplifier Datasheet

Brand: STK405-000A
Category: amplifier
Document type: Datasheet
Language: English
Pages: 3
File format: PDF
File size: 83 KB
Published: 07 June, 2012
Updated: 07 June, 2012
MD5 checksum: 5EBA090CE9A22358E5F62802274E3C02
PDF: STK STK405-000A Series Audio Power Amplifier Datasheet PDF

About this manual

This document provides technical specifications for the STK STK405-000A Series Audio Power Amplifier. It details various models within the series (STK405-010A through STK405-120A), listing their maximum ratings and recommended operating conditions.

What's inside

Operating Characteristics
Maximum Ratings
Recommended Operating Conditions
Equivalent Circuit
Test Circuit
Application Circuit
Stand-by Control Circuit
Package Outline

Specifications

Amplifier Class	B Class Amplifier
Power Output Range	10W/ch. to 80W/ch.
Total Harmonic Distortion (THD)	10%

Frequently asked questions

What is the maximum power output for each channel in the STK405-010A model?

The STK405-010A provides a maximum of 10 watts per channel.

What is the total harmonic distortion rating for this amplifier series?

The total harmonic distortion (THD) is rated at 10%.

Download PDF (83 KB)
