The document mainly provides information about the SMTD-160H-08 supplier.

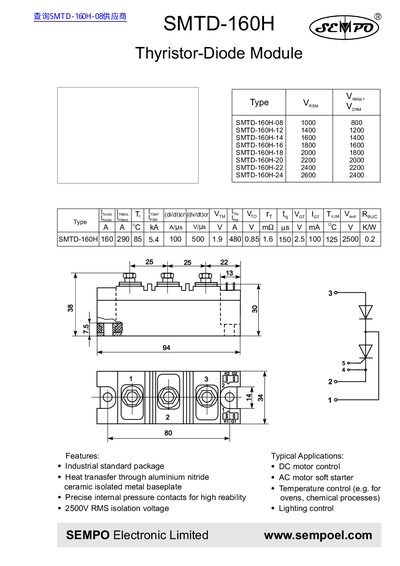

This document is a technical datasheet for the SEMPo SMTD-160H series of Thyristor-Diode Modules. It provides specific electrical ratings for various voltage configurations ranging from 800V to 2600V RMS.
The module features an industrial standard package with a ceramic isolated metal baseplate and aluminium nitride heat transfer capabilities. Key specifications include up to 2500V RMS isolation voltage, precise internal pressure contacts for high reliability, and suitability for applications such as DC motor control, AC motor soft starters, temperature control, lighting control, and oven heating.
| Isolation Voltage | 2500V RMS |
|---|---|
| Package Type | Industrial standard package |
| Baseplate Material | Ceramic isolated metal baseplate |
| Heat Transfer Material | Aluminium nitride |
The module has a maximum RMS voltage rating of 2500 V.
