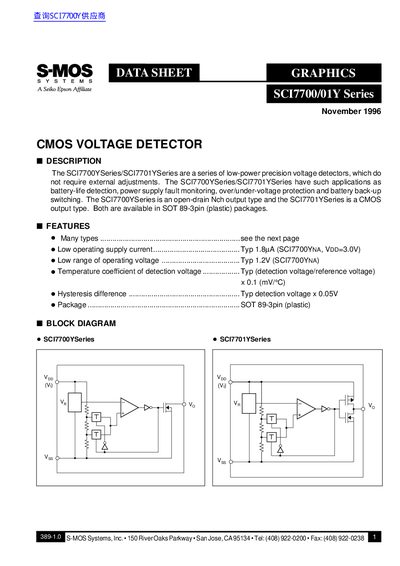

SCI7700/01Y Series is a series of low-power precision voltage detectors introduced by S-MOS Systems, Inc. The series of products do not require external adjustment, and have applications such as battery life detection, power supply fault monitoring, over/under-voltage protection and battery back-up switching.
The S-MOS SCI7700/01Y Series are low-power precision voltage detectors that do not require external adjustments. The SCI7700YSeries features an open-drain Nch output, while the SCI7701YSeries offers a CMOS output type. Both series are available in SOT 89-3pin plastic packages and are designed for applications such as battery-life detection, power supply fault monitoring, over/under-voltage protection, and battery back-up switching.
| Output Type (SCI7700) | Open-drain Nch |
|---|---|
| Output Type (SCI7701) | CMOS output type |
| Package Type | SOT 89-3pin (plastic) |
| Operating Temperature Range | -30 to 85 °C |
| Supply Voltage (Typical) | 1.2V to 6.0V |
They are used for battery-life detection, power supply fault monitoring, over/under-voltage protection and battery back-up switching.
The device operates between -30 and 85 °C.
It draws a typical current of 2.2 µA when VDD is 4.5V.
