NSD03A10 is a surface mount, diffusion type, rectifier silicon diode from NSC. It is commonly used for general rectifiers and has a rated voltage of 100V, an average rectified current of 3.0A, and a maximum operating temperature of 150℃.
This document is a technical datasheet for the DIODE NSD03A10, a fusion type rectifier diode designed for general use. It provides key specifications including a repetitive peak reverse voltage of 19V and an average rectified output current of 3A under resistive load conditions at 85°C.

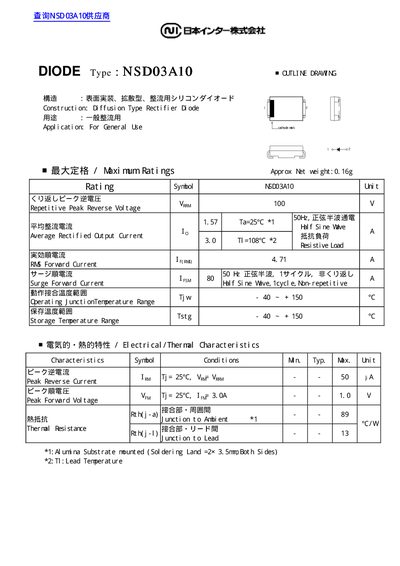

The datasheet details the electrical and thermal characteristics of the component, presenting graphs for forward current versus voltage, power dissipation versus ambient temperature, and surge current ratings. It also includes mechanical dimensions in millimeters for the device package. This manual is written in Japanese.
| Product Type | Fusion Type Rectifier Diode |
|---|---|
| Application | For General Use |
| Repetitive Peak Reverse Voltage | 19V |
| Average Rectified Output Current | 3A |
| Operating Junction Temperature Range | -0 to +150°C |
| Storage Temperature Range | -0 to +150°C |
The approximate net weight is 0.16g.
The operating junction temperature range is -0 to +150 degrees Celsius.
The required soldering land is 2x 3.5mm on both sides.
