1N957B to 1N981B 100V Zener Diodes

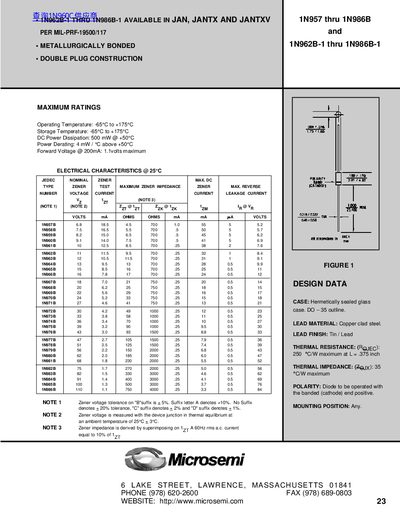

This document provides technical specifications for the Microsemi 1N957 through 1N986B series of Zener diodes. The devices are available in JAN, JANTX, and JANTXV grades and feature a double plug construction with metallurgically bonded leads.
The datasheet details maximum ratings including an operating temperature range of -65°C to +175°C and a DC power dissipation of 500 mW at +50°C. It also lists specific electrical characteristics such as Zener voltage, test current, impedance, and reverse leakage current for each model number in the series.
| Operating Temperature | -65°C to +175°C |
|---|---|
| Storage Temperature | -65°C to +175°C |
| DC Power Dissipation | 500 mW @ +50°C |
| Power Derating | 4 mW / °C above +50°C |
| Forward Voltage @ 200mA | 1.1volts maximum |
The Zener voltage tolerance on 'B' suffix models is +5%.
These devices are available in JAN, JANTX, and JANTXV grades.
