Agilent T3 HX Balun PISEMA 800-MHz Probe User Manual

This manual describes the features and usage of Agilent T3 HX Balun PISEMA 800 MHz probe.

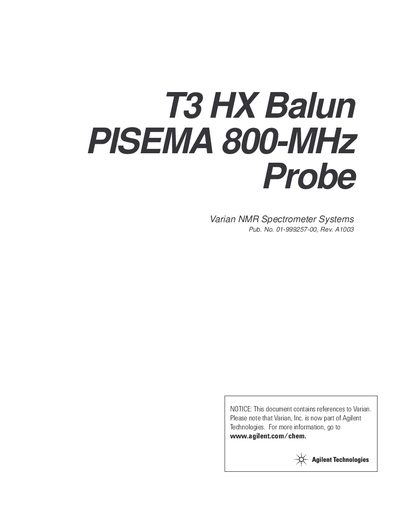

Agilent T3 HX Balun PISEMA 800-MHz Probe User Manual - cover page
Brand
T3
Document type
User Manual
Language
English
Pages
11
File format
PDF
File size
25.5 MB
Published
07 June, 2012
Updated
01 October, 2023
MD5 checksum
AC5FA0A5AF90CA3D54143E87107D2C96
PDF
Agilent T3 HX Balun PISEMA 800-MHz Probe User Manual PDF

About this manual

This manual provides instructions for installing and operating the T3 HX Balun PISEMA 800-MHz Probe on Varian/Agilent NMR spectrometer systems. It details the assembly of the probe stand, mounting procedures within the magnet bore, and safety precautions regarding high RF voltage.

What's inside

  • Safety Precautions
  • Installing the Probe
  • Connecting Purge Gas
  • Variable Temperature Operation
  • Sample Insertion and Removal
  • Installing and Removing Tuning Tubes
  • Tuning and Matching the X Channel
  • Low Gamma Tuning

Specifications

Operating temperature range-75°C to +100°C

Frequently asked questions

What safety steps are required before removing the probe?

Completely turn off RF and disconnect all RF cables to avoid electrical shock.

How should the probe be handled during sample changes?

The VT stack must not be disconnected from the probe during operation.
