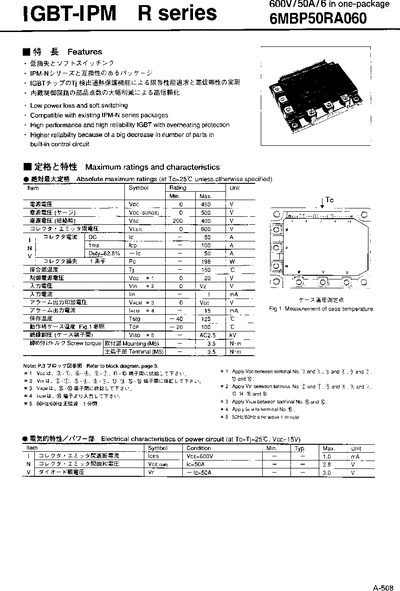

This document is a technical datasheet for the IGBT-IPM R series integrated power module (IPM), specifically model 6MBP50RA060. It describes an all-in-one package containing an IGBT with built-in control circuitry, featuring short circuit protection and overheating safeguards.
| Voltage rating (Voc) | 600 V |
|---|---|
| Operating temperature range | -40 to +125 C |
| Maximum surge voltage (Voc SURGE) | 500 V |
You must apply a screw torque of 3.5 N-m for the M5 mounting hole.
