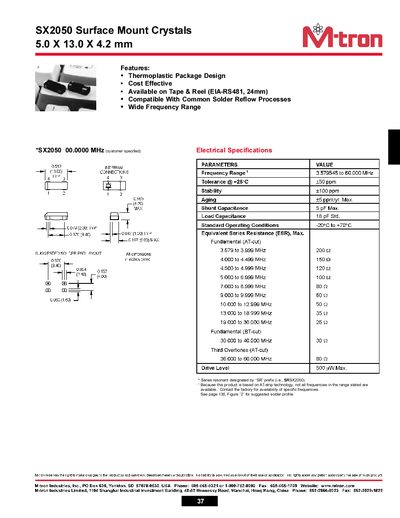

This document is a datasheet for the M-tron SX2050 series of surface mount crystals with dimensions of 5.0 x 13.0 x 4.2 mm. It highlights key features such as thermoplastic package design, cost-effectiveness, and compatibility with common solder reflow processes.
The datasheet provides detailed electrical specifications including frequency range (3.579545 to 60.000 MHz), tolerance (+/- 50 ppm), stability (+100 ppm), and aging rates. It also lists Equivalent Series Resistance (ESR) values for various fundamental and overtone frequencies, along with standard operating conditions from -20°C to +70°C.
| Dimensions | 5.0 x 13.0 x 4.2 mm |
|---|---|
| Frequency Range | 3.579545 to 60.000 MHz |
| Tolerance | +/- 50 ppm @ +25°C |
| Stability | +100 ppm |
| Aging | +5 ppm/yr. Max. |
| Shunt Capacitance | 5 pF Max. |
| Load Capacitance | 18 pF Std. |
| Operating Temperature | -20°C to +70°C |
The maximum drive level is 500 uW.
Yes, it is available on Tape & Reel (EIA-RS481, 24mm).
See page 136, Figure "2" for the suggested solder profile.
