Semikron SKCD 16 C 060 I HD Datasheet

Describe the features and characteristics of VRRM product.

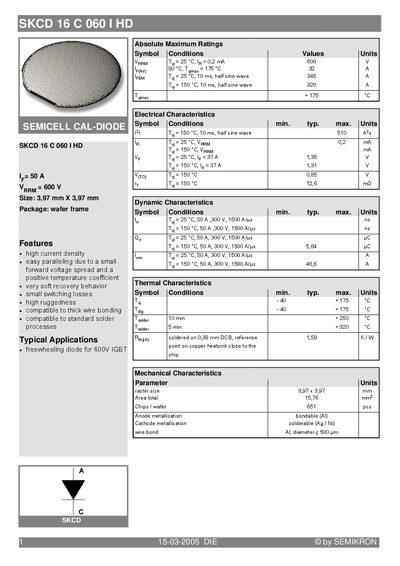

Semikron SKCD 16 C 060 I HD Datasheet - cover page
Brand
SEMICELL
Category
Diode Bridge Controller
Document type
Datasheet
Language
English
Pages
2
File format
PDF
File size
230 KB
Published
07 June, 2012
Updated
30 September, 2023
MD5 checksum
505A929C059702942E040EFF56A97B6F
PDF
Semikron SKCD 16 C 060 I HD Datasheet PDF

About this manual

This document is a technical datasheet for the Semikron SKCD 16 C 060 I HD semiconductor device. It specifies that the component is a freewheeling diode designed for use with 600V IGBTs.

The datasheet provides absolute maximum ratings, including a reverse voltage of 600 V and surge current capabilities up to 510 A²s. Key features highlighted include high current density, easy paralleling due to small forward voltage spread, very soft recovery behavior, and compatibility with thick wire bonding.

What's inside

  • Absolute Maximum Ratings
  • Typical Applications
  • Electrical Characteristics
  • Dynamic Characteristics
  • Thermal Characteristics
  • Mechanical Characteristics

Specifications

Reverse Voltage (VRRM)600 V
Forward Voltage Drop @ 150°C0.85 V
Operating Junction Temperature Range-40 to +175 °C
Package Size (Raster)3.97 x 3.97 mm

Frequently asked questions

What is the typical application for this diode?

It is used as a freewheeling diode for 600V IGBTs.

Is the device compatible with standard solder processes?

Yes, it is compatible to standard solder processes.
