ABC Electronics SB5017 SMD Power Inductor Datasheet

This PDF document describes the DC superposition characteristics of the product with model SB5017470YL, including the inductance values at different DC currents.

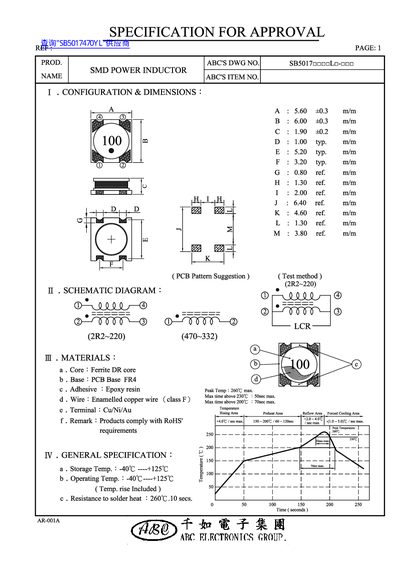

ABC Electronics SB5017 SMD Power Inductor Datasheet - cover page
Brand
ABE
Category
Other Electronics
Document type
Datasheet
Language
English
Pages
8
File format
PDF
File size
2 MB
Published
07 June, 2012
Updated
28 September, 2023
MD5 checksum
419891A7BEEC3E5F0B0F989DCCABEEC2
PDF
ABC Electronics SB5017 SMD Power Inductor Datasheet PDF

About this manual

This document is a specification sheet for the ABC Electronics Group SB5017 series of SMD Power Inductors. It details various models within the series, such as the SB5017470YL, listing their inductance values, tolerance, saturation current, and DC resistance.

The datasheet provides comprehensive technical data including configuration dimensions, material composition (ferrite core, FR4 base), general specifications for temperature ranges and soldering, electrical characteristics tables, packaging information, reliability test conditions, and UL card references for the magnet wire used.

What's inside

  • Configuration Dimensions
  • Schematic Diagram
  • Materials
  • General Specification
  • Electrical Characteristics
  • Packaging Information
  • Reliability Test
  • UL Card

Specifications

Core MaterialFerrite DR core
Base MaterialPCB Base FR4
Operating Temperature-40C to +125C
Solder Heat Resistance260C for 10 secs.
Inductance Test Frequency100KHz/ 1V

Frequently asked questions

What is the maximum operating temperature for this inductor?

The maximum operating temperature is plus 125 degrees Celsius.
