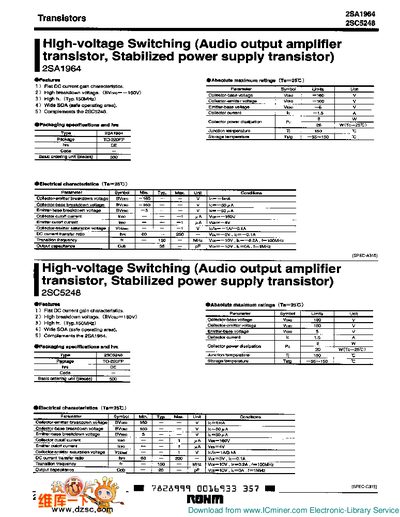

This document provides a technical overview of the ROHM 2SA1964 transistor. It is described as a high-voltage switching device suitable for audio output amplifiers and stabilized power supplies. Key features include flat DC current gain characteristics, a collector-emitter breakdown voltage (BVceo) of -160V, and a typical transition frequency (ft) of 150MHz.
The datasheet also catalogs various surface-mount and leaded packages available for this product line. These include compact options like the EMT3, UMT3, SMT3, and CPT3 series, as well as high-power isolation types such as TO-220FP and TO-220FN.
| Junction temperature (Tj) | 150 C |
|---|
