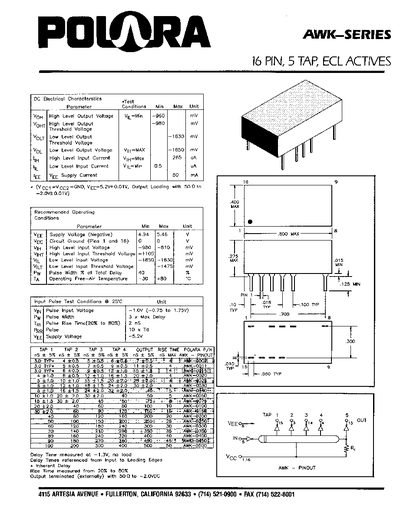

This document provides technical specifications for the PolarA AWK-Series of 16-pin, 5-tap ECL (Emitter-Coupled Logic) active devices. It lists DC electrical characteristics including high and low level output voltages, input currents, and supply current under specific test conditions.
| Device Type | 16 PIN, 5 TAP, ECL ACTIVES |
|---|---|
| High Level Output Voltage (Min) | -960 mV |
| Low Level Input Voltage Range | -1850 to -1630 mV |
| Supply Current (Max) | 50 mA |
| Operating Temperature Range | -30 to +80 C |
The recommended operating conditions specify a negative supply voltage between -4.94 V and -5.46 V.
The device draws a maximum of 50 mA from the Vee supply under test conditions.
These devices can operate in a free-air temperature as low as -30 C.
