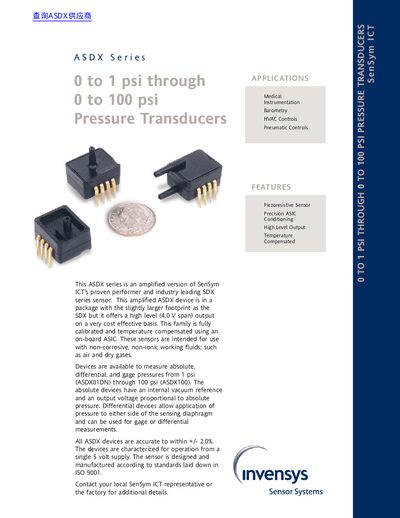

This document introduces the SenSym ICT ASDX series pressure transducers, which are designed for applications in medical instrumentation, barometry, HVAC controls, and pneumatic controls. The series features piezoresistive sensor, precision ASIC conditioning, high level output, and temperature compensation. It can measure absolute, differential, and gage pressures from 1 psi to 100 psi. The devices are accurate to within +/- 2.0%. They operate on a 5V power supply.
The SenSym ICT ASDX Series is an amplified version of the SDX series sensor designed for measuring absolute, differential, and gage pressures. These devices feature a precision ASIC conditioning circuit that provides high-level output (4.0 V span) on a cost-effective basis while offering temperature compensation.
The transducers are intended for use with non-corrosive, non-ionic working fluids such as air and dry gases. They operate from a single 5 volt supply and provide an output voltage proportional to the applied pressure within specified accuracy limits.
| Accuracy | +/- 2.0% |
|---|---|
| Supply Voltage | 5 volt supply |
| Operating Temperature Range | -20°C to +105°C |
| Storage Temperature Range | -40°C to +125°C |
| Output Span | 4.0 V span |
They are intended for use with non-corrosive, non-ionic working fluids such as air and dry gases.
The maximum supply voltage rating is 6.50 Vdc.
