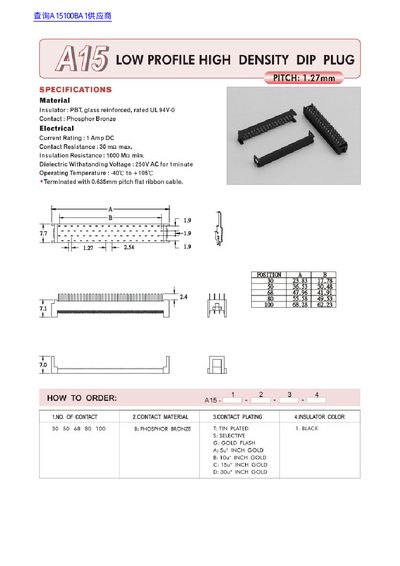

This document provides technical specifications for the AVI 718A 151 00BA 144 AUR Low Profile High Density DIP Plug. The connector features a phosphor bronze contact with an insulator made of PBT glass reinforced material rated UL 94-0.
Key electrical ratings include a current capacity of 1 Amp DC, a maximum contact resistance of 30 mΩ, and a dielectric withstanding voltage of 250V AC for one minute. The operating temperature range is specified from -40°C to +105°C.
| Current Rating | 1 Amp DC |
|---|---|
| Contact Resistance | 30 mΩ max |
| Insulation Resistance | 1000 MΩ min |
| Dielectric Withstanding Voltage | 250V AC for 1 minute |
| Operating Temperature | -40°C to +105°C |
The device has a current rating of 1 Amp DC.
It operates between -40°C and +105°C.
