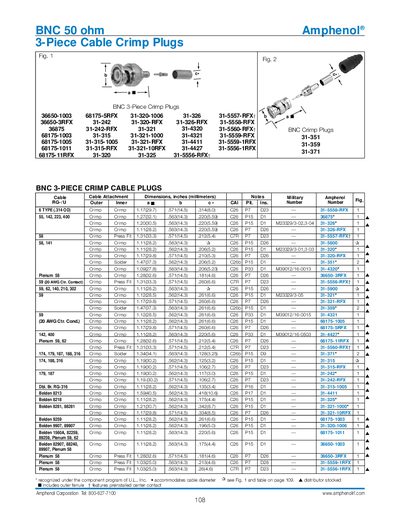

The document describes the features and characteristics of Amphenol® 3-Piece Cable Crimp Plugs 108, including its accommodated cable diameter, outer ferrule, and preinstalled center contact.
This document provides a comprehensive list of Amphenol BNC 50 ohm 3-piece cable crimp plugs. It details specific part numbers corresponding to different cable types, including RG/U series, military specifications (MIL-C-23329/3), and various Belden cables.
The datasheet includes a detailed table specifying dimensions in inches and millimeters for each plug type. It covers attachment methods such as Crimp, Solder, Press Fit, and combinations thereof, alongside the specific outer diameter of the cable they accommodate.
The outer diameter for this specific plug size is 1.27 inches.
The RG-58, RG-142, and RG-223 cables accommodate a 20 AWG center contact.
