5221199-5 is an active BNC RF connector from Amphenol. It is a jack and can be terminated to a coaxial cable. The coaxial cable termination type is crimp.

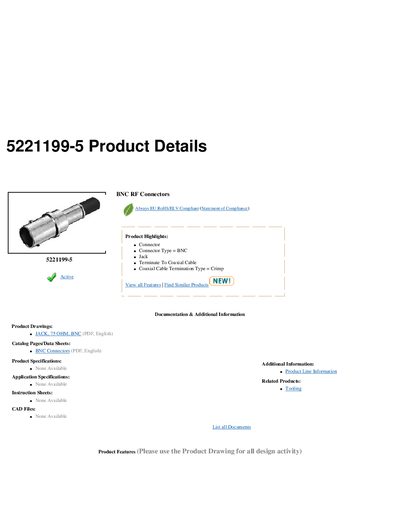

This document provides product specifications for the AMP model 5221199-5, which is an active BNC RF connector. It features a straight body style designed to terminate coaxial cables using a dual crimp method.
The connector is constructed with a brass coupling nut plated in nickel and a polyethylene dielectric material. The center contact is made of beryllium copper with gold plating, ensuring reliable electrical performance.
| Connector Type | BNC Jack |
|---|---|
| Gender | Jack |
| Crimp Type | Dual |
| Body Style | Straight |
| Grade | Commercial |
| Connector Impedance | 75 Ohm |
| Dielectric Material | Polyethylene |
| Coupling Nut Material | Brass |
| Center Contact Material | Beryllium Copper |
| RoHS/ELV Compliance | Compliant |
It is a BNC jack connector designed to terminate coaxial cable.
The connection uses a crimp termination type.
