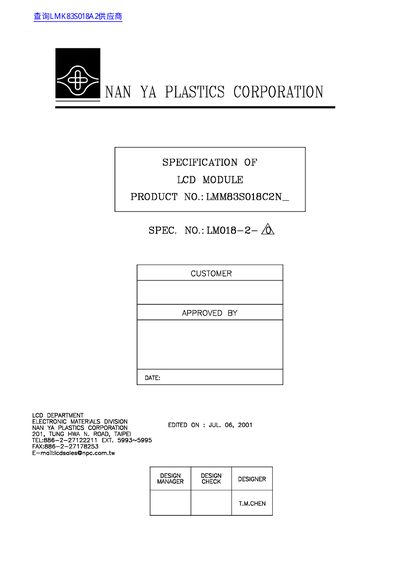

This document is a technical specification sheet for the LMM83S018C2N_ LCD module manufactured by NAN YA PLASTICS CORPORATION. The module features an 80mm x 36mm display size, a transflective rear polarizer, and an LED backlight option. It operates with a logic power supply of 4.75V to 5.25V and includes detailed electrical characteristics for both the LCD driving voltage and LED current.
| Module Size | 80.0 (W)mm x 36.0 (H)mm x MAX14.5 (D)mm |
|---|---|
| Dot Pitch | 0.63 (W)mm x 0.83 (H)mm |
| Number of Dots | 16 (w) x 1 (H)Dots |
| LCD Display Mode | STN: Yellow Made Rear Polarizer: Transflective |
| Backlight Type | LED |
| Weight | 36.8 g(approx.) |
| Power Supply for Logic (VDD-VSS) | 4.75 to 5.25 V |
| Ambient Temperature (Operation) | 0 to 50 C |
The viewing direction is defined as 6 O'clock.
No, the controller is excluded from this specification.
