AMP 2-5329082-1 BNC RF Connector Product Details

2-5329082-1 model BNC connector, male head, can be used for coaxial cable connection, using crimping connection

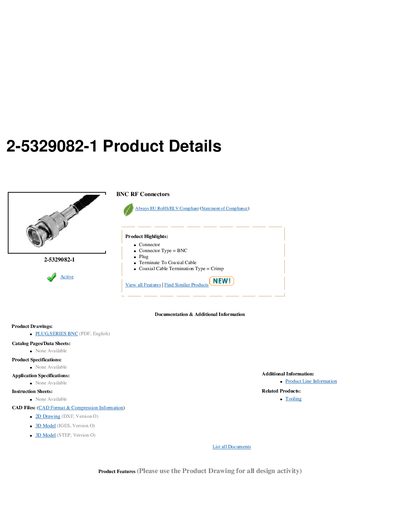

AMP 2-5329082-1 BNC RF Connector Product Details - cover page
Brand
2-5329082-1
Category
Other Electronics
Document type
Product Leaflet
Language
English
Pages
2
File format
PDF
File size
70 KB
Published
06 June, 2012
Updated
01 October, 2023
MD5 checksum
A9776465EFDC60EFC9A999E7C0B91E38
PDF
AMP 2-5329082-1 BNC RF Connector Product Details PDF

About this manual

This document provides product details for the AMP model 2-5329082-1, a BNC RF connector designed as a plug. It is intended to terminate coaxial cables using a crimp method.

The connector features a military grade with a straight body style and no insulation or sealing. Key materials include polypropylene for the dielectric, brass for the coupling nut and center contact, and silver plating on the body with gold plating on the center contact.

What's inside

  • Product Highlights
  • Connector Type
  • Mechanical Attachment
  • Electrical Characteristics
  • Termination Related Features
  • Body Related Features
  • Contact Related Features
  • Configuration Related Features

Specifications

Connector TypeBNC
GenderPlug
Crimp TypeSingle
Body StyleStraight
GradeMilitary
Dielectric MaterialPolypropylene
Coupling Nut MaterialBrass
Connector Impedance50 Ohms
Coaxial Cable Termination TypeCrimp
Body PlatingSilver
Center Contact MaterialBrass
Center Contact PlatingGold

Frequently asked questions

What is the connector type and gender of model 2-5329082-1?

This product is a BNC RF Connector with a Plug gender.

What material is the dielectric of this connector made from?

The body insulation uses Polypropylene as the dielectric material.

Which coaxial cable types are compatible with this connector?

This connector is designed for use with RG/U or Mfg. cables of type 58, 58A, 58B, and 58C.
