5225973-4 is a dual crimp right angle active BNC RF connector from Amphenol. This connector is silver plated and complies with the EU RoHS/ELV standard.

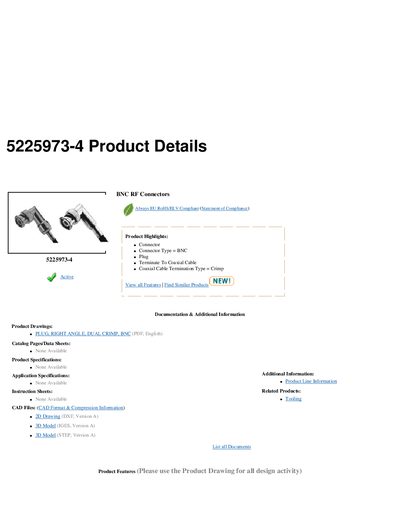

This document provides product drawings and detailed specifications for the AMP part number 5225973-4. It is a right-angle plug type BNC connector designed for coaxial cable termination using a dual crimp method.
The component features a brass center contact with gold plating, a brass coupling nut with silver plating, and Teflon dielectric material. It is rated for 50 ohm impedance and complies with RoHS and ELV standards.
| Connector Type | BNC |
|---|---|
| Gender | Plug |
| Body Style | Right Angle |
| Crimp Type | Dual |
| Grade | Military |
| Dielectric Material | TEFLON |
| Coupling Nut Material | Brass |
| Connector Impedance | 50 |
| Body Plating | Silver |
| Center Contact Material | Brass |
| RoHS/ELV Compliance | Compliant |
It is a BNC RF connector with a plug gender.
The coaxial cable must be terminated using a crimp method.
The connector has an impedance of 50 ohms.
